16" QHD+ 3K 240Hz G-Sync, Intel Core Ultra 9 275HX 24-core, NVIDIA RTX 5080 16GB GDDR7, 1TB PCIe 4.0, 16GB DDR5 5600MHz, Opt Windows

Starting from $4,669.00

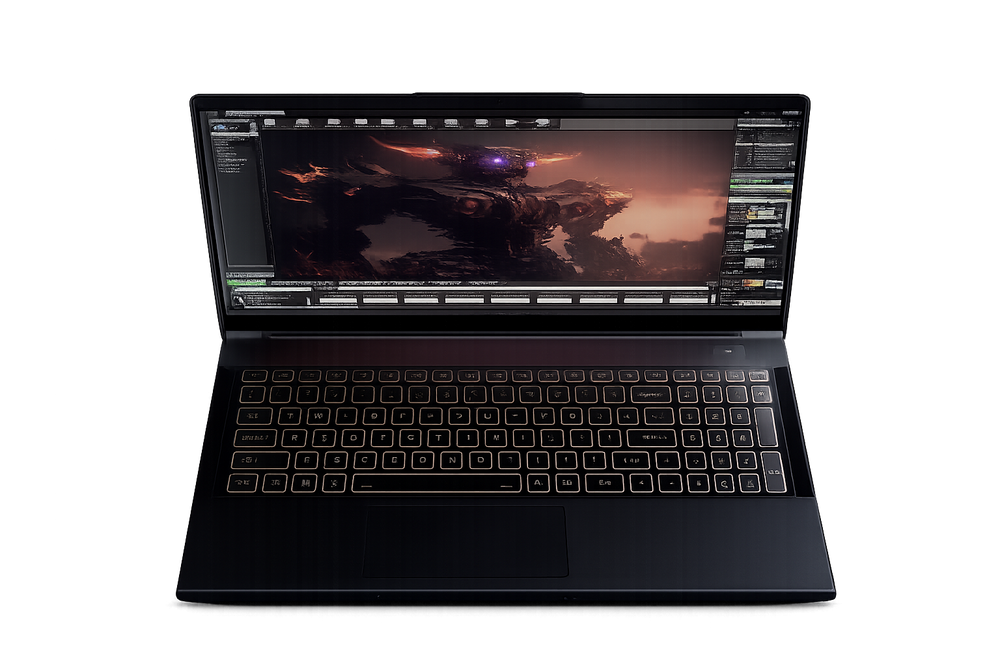

Metabox Prime-XR X560WNS-G-1 16.0" Gaming Laptop

Overview

Unleash extreme RTX 5080 performance at 175W TGP with the Metabox Prime-XR X560WNS-G-1 — the highest-tuned 5080 variant in the Prime-XR lineup. Pairing Intel's Core Ultra 9 275HX 24-Core processor with NVIDIA's flagship RTX 5080 16GB at 175W TGP, this 16.0" Prime-XR delivers desktop-class ray tracing and AI compute. With a 240Hz QHD+ 3K G-Sync display, expandable DDR5 memory up to 128 GB, three M.2 SSD slots with RAID support, and Killer Doubleshot Pro networking.

Key Features

  • Display: 16.0" QHD+ 3K (2560 x 1600) Edge-to-Edge Matte 240Hz LED — 100% DCI-P3, 500 Nits, with NVIDIA G-Sync Technology
  • Processor: Intel Core Ultra 9 275HX 24-Core Processor (up to 5.4 GHz), 24 Threads, 36 MB L3 Cache, with Intel HM870 Express Chipset
  • Graphics: NVIDIA GeForce RTX 5080 16GB GDDR7 VRAM (175W TGP & Dynamic Boost 2.0)
  • Memory: 16 GB DDR5 5600 MHz — expandable up to 128 GB DDR5 5600 MHz via Two 262Pin SODIMM (Dual Channel)
  • Storage: Three M.2 2280 SSD slots — 1x PCIe Gen 5x4, 2x PCIe Gen 4x4 (RAID 0/1/5 supported)
  • Connectivity:
    • 2 x Thunderbolt 4 combo ports with Power Delivery DC-in
    • 2 x USB 3.2 Gen2 ports (Type A) with 1 x Powered USB, AC/DC
    • 1 x HDMI output port (with HDCP)
    • 1 x 2-in-1 Audio Combo Jack (Headphone + Microphone)
    • 1 x RJ-45 LAN port (Killer 10/100/1000/2500Mb Base-TX Ethernet)
    • 1 x DC-in jack
  • Networking:
    • Built-in Killer 10/100/1000/2500Mb Base-TX Ethernet LAN
    • Intel BE200 Wi-Fi 7 Low Latency Tri Band Wi-Fi & Bluetooth 5.4 (up to 5.8 Gbps)
    • Killer BE1750x Wi-Fi 7 Low Latency Tri Band Wi-Fi & Bluetooth 5.4 (up to 5.8 Gbps)
    • Killer Doubleshot Pro (up to 8.3 Gbps) with Killer BE1750x Wi-Fi selection
  • Audio:
    • High Definition audio interface
    • Built-in array microphone
    • Built-in two speakers
    • Sound Blaster Studio Pro 2
  • Keyboard: Adjustable 4-zone RGB illuminated keyboard with numeric pad, fully programmable per key with colour animations
  • Camera: Dual Sensor 5.0 MP Windows Hello camera with TNR, SecureBIO Module, and Human Presence Detection
  • Card Reader: Micro SD Push-Push card reader
  • Security:
    • Kensington-type Lock slot
    • TPM 2.0
  • Chassis & Design:
    • dGPU MUXed Graphics Switch Technology — Discrete Mode or Hybrid Mode
    • NVIDIA G-SYNC Technology and Virtual Reality ready
    • Vapor Chamber Thermal Design
    • Intel Dynamic Tuning Technology, FlexiCharger
    • Windows Mixed Reality Compatible
  • Battery & Power:
    • 4-cell Polymer battery pack, 80 WH
    • Full Range AC-in 100–240V, 50–60Hz, 230W AC Adapter (DC output 20V, 11.5A)
  • Dimensions & Weight:
    • Laptop: 355.8 mm (W) x 271 mm (D) x 19.9 mm (H); 2.25 kg including barebone and 80 WH battery
    • Power Adapter: 155 mm (W) x 75 mm (D) x 25 mm (H); 0.57 kg
  • Warranty: 2-Year Metabox Warranty, with optional upgrades to 2-Year and 3-Year Platinum Care Australia Wide Onsite Pickup and Return Warranty



This laptop is available for next-day shipping, ensuring you receive your high-performance machine promptly.

Technical Specifications

Processors • Intel 24-Core Ultra 9 275HX Processor (5.4GHz), 24 Threads, 36MB L3 Cache
Core Logic
• Intel HM870 Express Chipset
Displays • 16.0" QHD+ 3K (2560x1600) Edge-to-Edge Matte 240Hz LED - 100% DCI P3 / 500 Nits with NVIDIA G-Sync Technology
• 16.0" UHD+ 4K (3840x2400) Edge-to-Edge Matte 120Hz LED - 100% DCI P3 / 500 Nits with NVIDIA G-Sync Technology
• X-Rite Pro Colour Calibration Available Across Various Screen Options
Storage • 1x M.2 2280 SSD with PCIe Gen 5x4
• 2x M.2 2280 SSD with PCIe Gen 4x4 (RAID 0/1)
• 3x M.2 2280 SSD with PCIe Gen 4x4 (RAID 0/1)
• Three Total M.2 SSD Slots
• RAID 0/1/5
Pointing Device • Built-in touch pad with Microsoft PTP multi-gesture and scrolling function
I/O Ports • 2 x Thunderbolt 4 combo port with Power Delivery DC-in
• 2 x USB 3.2 Gen2 ports (Type A) with 1 x Powered USB, AC/DC
• 1 x HDMI output port (with HDCP)
• 1 x 2-in-1 Audio jack (Headphone / Microphone)
• 1 x RJ-45 LAN port (Killer 10/100/1000/2500Mb Base-TX Ethernet LAN)
• 1 x DC-in jack
Network • Intel BE200 Wi-Fi 7 Low Latency Tri Band Wi-Fi & Bluetooth 5.4 (up to 5.8 Gbps)
• Killer BE1750x Wi-Fi 7 Low Latency Tri Band Wi-Fi & Bluetooth 5.4 (up to 5.8 Gbps)
• Killer Doubleshot Pro (up to 8.3 Gbps) with Killer BE1750x Wi-Fi selection
Other Features • Dual Sensor 5M Hello camera with TNR, SecureBIO and Human Presence Detection
• Built-in Killer 10/100/1000/2500Mb Base-TX Ethernet LAN
• Intel Dynamic Tuning Technology
• Micro SD Push-Push Card reader
• NVIDIA Virtual Reality ready
• NVIDIA G-SYNC Technology
• Killer DoubleShot Pro with Killer Wireless Module
• FlexiCharger
• Windows Mixed Reality Compatible
• TPM 2.0
• Vapor Chamber Thermal Design
Memory • Supports Dual 2X DDR5 Memory in Dual Channel via Two 262Pin SODIMM / Expandable up to 128GB 5600MHz DDR5
Graphics Microsoft Hybrid Graphics Switching Mode
• Intel Iris Xe Graphics
NVIDIA Graphics Variants
• NVIDIA GeForce RTX 5070Ti 12GB GDDR7 VRAM (140W TGP & Dynamic Boost 2.0)
• NVIDIA GeForce RTX 5080 16GB GDDR7 VRAM (140W TGP & Dynamic Boost 2.0)
• NVIDIA GeForce RTX 5090 24GB GDDR7 VRAM (140W TGP & Dynamic Boost 2.0)
Features
• dGPU MUXed Graphics Switch Technology - Discrete Mode or Hybrid Mode
• Supports 4 active displays
• Supports NVIDIA Surround View via HDMI x1, miniDP x1, Thunderbolt 4.0 (x2)
Audio System • High Definition Audio
• Built-in array microphone
• Built-in two speakers
• Sound Blaster Studio Pro 2
Keyboard • Adjustable 4-zone Colour RGB illuminated keyboard with numeric pad and colour animations
• Keyboard colours programmable per key
Security • Security (Kensington Type) Lock Slot
• TPM 2.0
Physical Properties Laptop Dimensions
• 2.25 kg, including Barebone and 80WH Battery
• 355.8 (W) x 271 (D) x 19.9 (H) mm
Power Adapter Dimensions
• 0.57 kg
• 15.5 (W) x 7.5 (D) x 2.5 (H) cm
Power System • 4-cell Polymer battery pack, 80WH
• Full Range AC adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A, 230W
Warranty • 2-Year Metabox Warranty
• Optional upgrade 3-Year Platinum Care Australia Wide Onsite Pickup and Return Warranty
• Optional upgrade 4-Year Platinum Care Australia Wide Onsite Pickup and Return Warranty
